Road rollers are basically used for road construction. Soil compaction is executed for a long-lastingroad. The soil moisture content analysis determines the intensity of soil compaction that is necessary. Since heavy construction equipment is employed for road construction, safety on road construction workis essential.
When it comes to soil compaction works, Sinoway soil compactor with various capacities is always the best choice for you. Sinoway vibratory road roller for soil compaction is designed with many innovative features that provide excellent compacting drum performance and operating comfort. We offer single drum road roller with smooth drums, as well as padfoot drum models, both fixed and removable types are available. Whether you are compacting cohesive loam or granular gravel-sands, Sinoway vibrator road rollers are devoted to maximum your compaction effectiveness and efficiency, and minimum your cost.
Sinoway vibratory road roller starts from 7 tons up to 22 tons’ operating weight, with both mechanical transmission and full hydrostatic transmission available. Our single drum road roller series have been contributing to compacting applications like trenches and backfill, air port construction, foundation works, subbases and bases construction and dam construction, etc.
Main Advantages
Cummins diesel engine with great power reservasion, low emission and fuel consumption.
Mechanical axle travel mechanism, electric-operated hydraulic dual amplitude device and hydraulic articulated steering with excellent function- worth ratio.
Two braking systems of mechanical hand brake and air-over-oil operated foot brake for safety and reliability.
Entire machine in compact design, circle-arc shape engine hood with beautiful appearance.
Bright and spacious driver’s cabin with optional air-conditioner in cold and warm.
Optional padfoot shell kits for compaction of cohesive materials.
| Engine |
| Model | Cummins 6BT5.9 |
| Type | Six-cylinder,water-cooled |
| Rated power | turbocharged,mechanical injection |
| Rated speed | 110KW |
| Transmission |
| Type | Mechanical drive (Gear box) |
| Grade ability | 25% |
| Gear shifts(Forward/Reverse) | |
| Travelling speed (km/h) | F3/R3 |
| Forward/Reverse I | 2.6/2.6 |
| Forward/Reverse II | 6.6/6.6 |
| Forward/Reverse III | 9.1/9.1 |
| Axle | |
| Drive type | Rear wheel drive |
| Front axle load | 6000Kg |
| Rear axle load | 4000Kg |
| Main technical specification |
| Operating weight | 10000Kg |
| Type | Hydraulic vibration |
| Frequency | 32Hz |
| Amplitude | 0.82/1.74mm |
| Static linear load | 233N/cm |
| Vertical oscillation | 8º |
| Drum shell thickness | 24mm |
| Centrifugal force | 198kN/93kN |
| Dimension |
| Overall length | 5500mm |
| Overall width | 2300mm |
| Overall height | 3000mm |
| Drum width | 2100mm |
| Drum Dia. | 1500mm |
| Tyre size | 23.1-26 |
| Ground clearance | 386mm |
Product Tags:
|
|

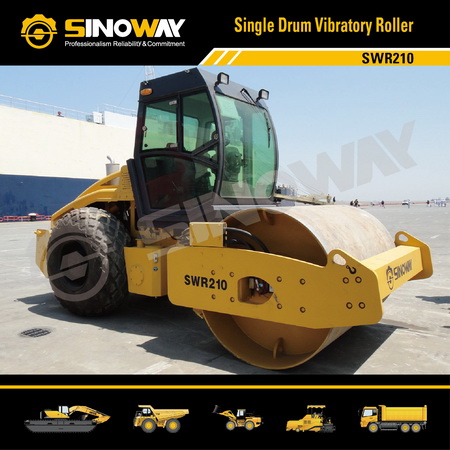

Highway Construction machinery 10 ton Road Roller Soil Compactor with Cummisn engine Images
|
